JCB Rock breaker is a powerful percussion hammer fitted to an excavator / Backhoe for demolishing concrete structures or rocks. It is powered by an auxiliary hydraulic system from the machine, which is fitted with a foot-operated valve for this purpose.

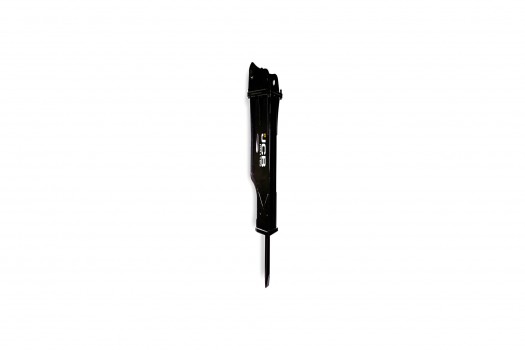

HAMMER MASTER 1180
- Impact Energy
- 3665 J
- Operating Weight
- 1150 Kg
- Oil flow
- 100~150 lmp

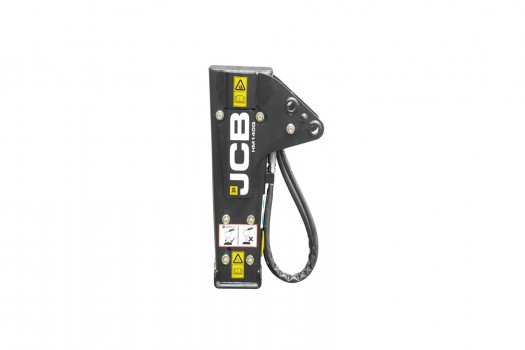

JCB HAMMER MASTER HM140
- Operating weight
- 127 Kg
- Blow rate
- 960~1320 bpm
- Tool diameter
- 45 mm

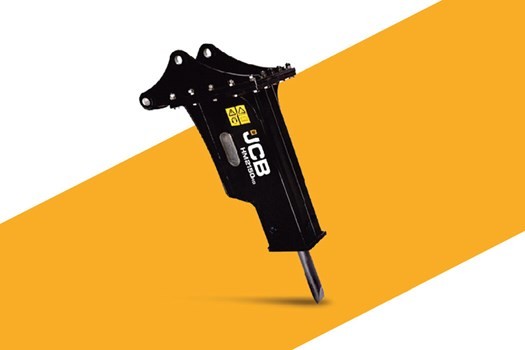

HAMMER MASTER 2150
- Operating weight
- 1764 Kg
- Impact Energy
- 4980 J
- Oil flow
- 120~180 lmp
HAMMER MASTER 2160 HD
- Impact Energy
- 4527 J
- Operating Weight
- 1600 Kg
- Tool Diameter
- 135 mm
HAMMER MASTER 2170 HD
- Operating Weight
- 1710 Kg
- Tool Diameter
- 140 mm
- Oil Flow
- 130~180 lmp
JCB HAMMER MASTER 2180 HD
- Operating Weight
- 1800 Kg
- Carrier weight
- 18-24 Tonne
- Impact Energy
- 5350 J
JCB HAMMER MASTER 2780HD
- Impact rate
- 280 - 330 bpm
- Carrier weight
- 28 - 42 Tonne
- Operating weight
- 2700 Kg
HAMMER MASTER 280
- Operating Weight
- 260 Kg
- Impact rate
- 600 bmp
- Total Diameter
- 70 mm

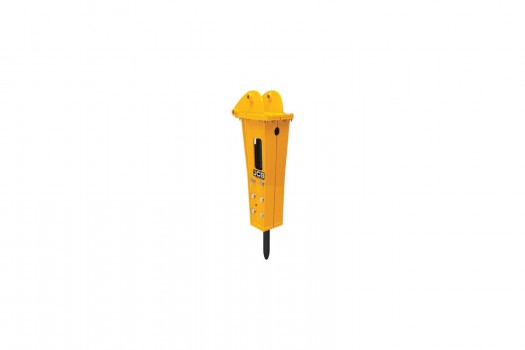

HAMMER MASTER 360XHD
- Impact Rate
- 600~1800 bmp
- Operating Weight
- 405 Kg
- Total Diameter
- 80 mm
HAMMER MASTER 380
- Impact Energy
- 981 J
- Operating Weight
- 410 Kg
- Impact Rate
- 450~750 bpm
HAMMER MASTER 980 HD
- COMPATIBLE ON MACHINES WEIGHING
- 10~15 Tonne
- OPERATING WEIGHT
- 900 Kg
- IMPACT ENERGY
- 2518 J
